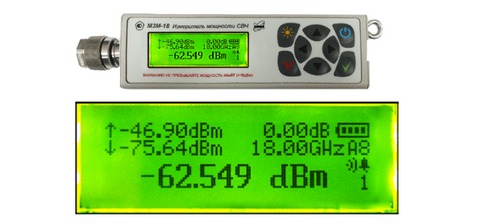

M3M-18 power meter measures the power level of continuous wave (CW) RF and Microwave signals from 10 MHz to 18 GHz frequency range. Power supply is performed via internal battery. M3M is used for design, tuning, testing and verifying various RF and MW devices for electronics, communication, radars, T&M.
Key Specifications
- Frequency range from 10 MHz to 18 GHz
- Dynamic range from −50 dBm to +20 dBm
- High Power accuracy ±0.33 dBm
- Lightweight and Rugged Design
- Simple set-up and usage
- Up to 16 hours of operation with built-in battery
Main Capabilities
- CW signals power measurement from 0.01 to 18 GHz
- Pulse measurement from −50 dBm to −20 dBm power range
- Absolute and relative power measurements
- Validation and characterization of amplifiers,switches, and other RF\MW components
Software
- User-friendly interface
- Saving measurement results to PC file (.txt, .csv)
- Measurement results correction with reference to external devices insertion loss/gain
- Linear and Log scales
Features
- Frequency range from 10 MHz to 18 GHz
- Dynamic range from −50 dBm to +20 dBm
- High Power accuracy ±0.33 dBm
- Lightweight and Rugged Design
- Simple set-up and usage
- Up to 16 hours of operation with built-in battery
| Frequency Range | 10 MHz to 18 GHz |
| Dynamic Range | −50 dBm to +20 dBm |
| Brand | Micran |
