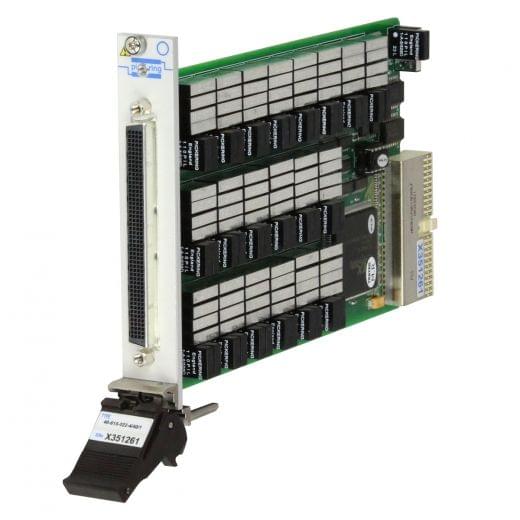

PXI 20 Banks of 4 Channel 2 Pole MUX - 40-615-022-20/4/2

High density multiplexer modules featuring a wide range of switching configurations, especially useful where a large number of small multiplexers are required. Typical applications include signal routing in ATE and data acquisition systems. Each module is factory configured into one of the configuration modes. Connections are made via a front panel 200-pin connector.

Features
  • Very High Density Multi-Banked Multiplexer
  • Choice of 20, 10, 5, 4, 2 or 1 Multiplexers per Module
  • Up to 160 Switch Points Available with 1 or 2-Pole Switching Formats
  • All Versions Use High Reliability Pickering Reed Relays
  • Fast Operating Speed <500us
  • Switch up to 150VDC/100VAC, 1.0A with 20W Max Power
  • Automatic Isolation Switches Reduce Capacitive Loading in Large Systems
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
Banks 20
Poles 2
Max I (A) 1.2
Max V DC 150
Channels 4
Brand Pickering Interfaces
