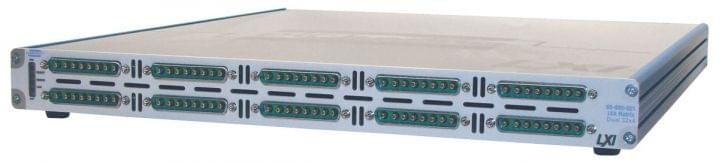

LXI Dual 16x8, 10A, 1-pole Matrix - 60-600-004
Product Code: 60-600-004
Brand: Pickering Interfaces
QTY:
Share this
Description
A high power single pole matrix module capable of switching up to 400VDC/250VAC, 10A (300W/2500VA max power) The use of high quality electro-mechanical relays offer high switching confidence and make it suitable for signal routing in large ATE systems. The 60-600 range is available in both single and dual configurations size range from single 16x4 to 16x16 and dual 16x8 to 32x4.
Specifications
| Platform | LXI |
| Switch Type | EMR |
| X Size | 16 |
| Y Size | 8 |
| Banks | 2 |
| Poles | 1 |
| Max I (A) | 10 |
| Max V DC | 400 |
| brand | Pickering Interfaces |
