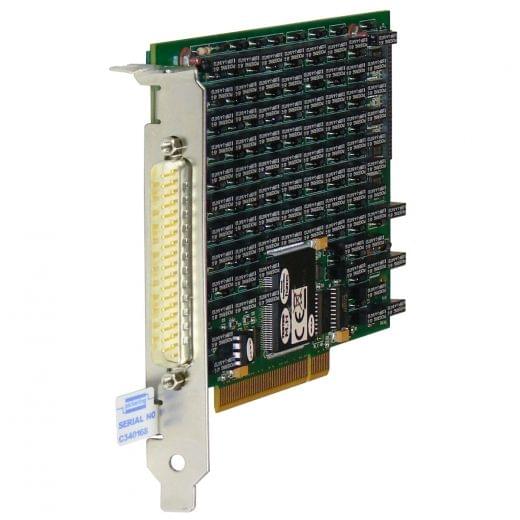

10Ch,12Bit,0 to 4kOhm PCI High Density Resistor Card, 50-295A-121-10/12

The 50-295A is a Programmable Resistor card with up to 18-channels of 8-bit resolution resistor chains in a single PCI slot. The flexible architecture allows the card to also be supplied as 12-bit, 16-bit or 24-bit resolution versions for applications requiring finer resolution, greater resistance range or higher channel count. The card is ideal for simulating the sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications.

Features
  • High Density Resistor Card
  • Configurable to 8, 12, 16 or 24-Bit Resolution
  • Up to 18 Channels of 8-Bit Resolution
  • Up to 10 Channels of 16-Bit resolution
  • Provides Fully Isolated Variable resistors
  • Configurable as Adjustable Resistor or Potentiometer
  • Built-in Non-volatile Parametric Memory for Calibration Data
  • Uses High Reliability Pickering Reed Relays for Maximum Performance
  • Up to 2000 Value Changes Per Second
  • Special Versions With Non-Standard Resistors Built to Order
  • VISA, IVI and Kernel Drivers Supplied for Windows and Soft Front Panel
Type Standard Resistor
Platform PCI
Resistance Range 1.5Ohm to 4kOhm
Accuracy (%) 0.5
Resolution (Ohm) 1
Channels 10
Brand Pickering Interfaces
