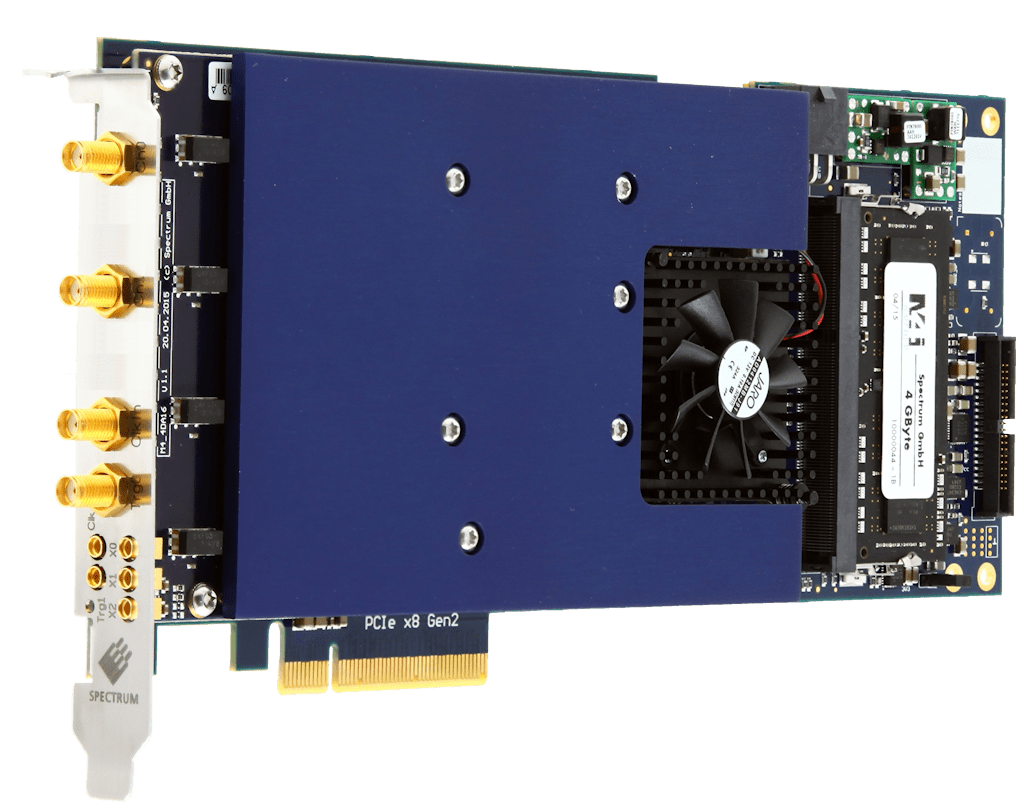

2Ch,16 Bit,400 MHz,1.25 GS/s PCI Express AWG, M4i.6631-x8

The M4i.66xx-x8 series arbitrary waveform generators (AWG) deliver the highest performance in both speed and resolution. The series includes PCIe cards with either one, two or four synChronous Channels. The large onboard memory can be segmented to replay different waveform sequences. The AWG features a PCI Express x8 Gen 2 interface that offers outstanding data streaming performance. The interface and Spectrum s optimized drivers enable data transfer rates in excess of 2.8 GB/s so that signals can continuously replayed at a high output rate. While the cards have been designed using the latest teChnology they are still software compatible with the drivers from earlier Spectrum waveform generators. So, existing customers can use the same software they developed for a 10 year old 20 MS/s AWG card and for an M4i series 625 MS/s AWG.

In contrast to the parallel PCI buses PCI Express slots contain serial point to point connections. EaCh connection pair (lane) is able to reaCh a burst connection speed of 250 MB/s (Gen 1) or 500 MB/s (Gen2). The fast streaming cards from Spectrum with PCI Express x8 Gen 2 interface need a physical connector of x8 or x16. The card interface can adopt to any electrical PCI Express interface, be it x1, x4, x8 or x16 with any PCI Express generation. One advantage of the PCI Express teChnology is the direct connection of eaCh slot allowing a full transfer bandwidth for eaCh single card. PCI Express is the bus standard for PC based systems for the next couple of years. Today's State-of-the-art motherboards normally have a couple of PCI Express slots but only one or two PCI-X slots. Server and industrial motherboards as well as high performance cosumer motherboards offer normally PCI Express x8 slots.

Application Examples

  • Telecommunications
  • ResearCh and Development
  • Stimulus-Response Tests
  • Semiconductor Tests
Features
  • 400 MHz,1.25 GS/s,2 GS,2Ch PCI Express AWG
  • Fast 16 bit arbitrary waveform generator
  • Simultaneous signal generation on all Channels
  • Output level �160 mV to �5 V (625 MS/s) or �4 V (1.25 GS/s) into High Impedance
  • Output level �80 mV to �2.5 V (625 MS/s) or �2.0 V (1.25 GS/s) into 50 Ohm
  • Fixed trigger to output delay
  • Single-Shot, Loop, Gated, Sequence Mode
  • Marker Output, Digital Outputs
  • SynChronization of up to 8 cards
  • PCI Express x8 Gen2 Interface
  • Works with x8/x16 PCIe Gen1 to Gen3 slots
  • Sustained streaming speed card to PC up to 3.4 GB/s
  • Sustained streaming speed PC to card up to 2.8 GB/s
  • Direct data transfer to / from CUDA GPU using SCAPP
Platform PCI Express x8
Analog-Out 2
Digital-Out 3
Resolution 16 Bit
Samplerate (Max) 1.25 GS/s
Bandwidth 400 MHz
Memory (Max) 2 GS
Brand Spectrum Instrumentation GmbH
