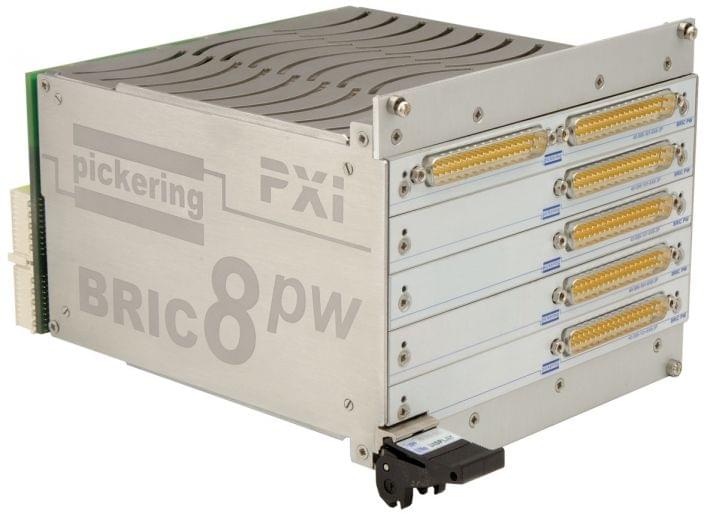

Dual 6x4 3pin BO PXI BRIC8 FIBO Matrix - 40-595A-006

The 40-595A is a matrix module based on the BRIC format that is designed for fault insertion applications in safety critical testing. As with other BRIC modules the matrix size can be scaled to suit the user application. The 40-595 has a very high current rating of 10 Amps, ideal for higher power systems, and can be used as a conventional matrix.

Features
  • Integrated High Power PXI Matrix Module
  • Built In High Performance Screened 8-Channel Analog Bus
  • 3-Pin Breakout Configuration For Fault Simulation and Specialist Test Applications
  • Sizes Up To Dual 30x4 Power Matrix on 5 Daughter Cards
  • Load Just The Number of Daughter Cards You Need For Your Application
  • Uses Gold Flash Over Silver Alloy Contact Electro-mechanical Relays
  • Crosspoint Switches - 125VDC/250VAC, 10A
  • Breakout Switches - 125VDC/250VAC, 8A
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
X Size 6
Y Size 4
Fault Buses 8
Max I (A) 10
Max V DC 400
Channels 6
Brand Pickering Interfaces
