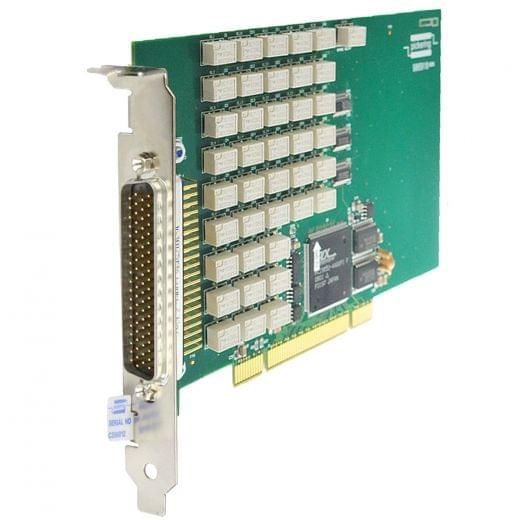

PCI 26xSPDT 2Amp Relay Card - 50-132-002

The 50-131-002 26xSPDT relay module is part of our range of PCI, low cost, general purpose electro-mechanical relay modules which are capable of switching voltages up to 300VDC/250VAC and current up to 2A. They are suitable for use where reed relay based switching modules do not have sufficient voltage or current carrying capability. Applications include the switching of medium power AC and DC loads, or slave switching larger relays, contactors or solenoids. Connections are made to the card via a front panel mounted 78 pin D-Type connector plug.

Features
  • Low Cost Relay Card For Medium Power Switching Applications
  • Up to 39 Electro-mechanical Relays Per Module
  • Choice of SPST or SPDT Contact Configurations
  • Maximum Current 2A Hot or Cold Switching
  • Switch upto 300VDC/250VAC and up to 60W Max Power
  • VISA, IVI & Kernel Drivers Supplied for Windows
Platform PCI
Relay Contacts SPDT
Switch Type EMR
Poles 1
Max I (A) 2
Max V DC 300
Relays 26
Brand Pickering Interfaces
