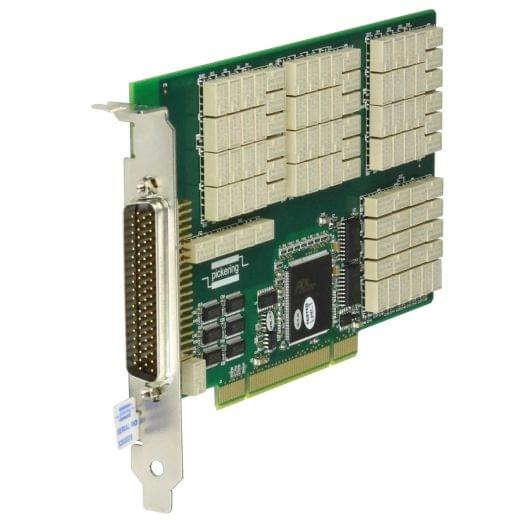

CAN/FlexRay/Differential Bus PCI Fault Insertion Switch - 8 Channel - 50-200-008
This PCI Fault Insertion card is designed to simulate common faults on two wire communication interfaces such as CAN Bus. This card supports 4 or 8-channels of two wire serial interfaces. Each channel can simulate an open fault in either or both wires, a short between both wires or a short to one of eight externally applied fault connections, such as a battery connection or ground, via four fault buses. Each channel can support up to 0.3A and is rated to handle up to 100V between the wire pairs. The wire pairs have controlled transmission line impedance suited to most differential pair signalling systems, including fast CAN Bus interfaces and RS232. Each fault bus is capable of carrying 2A allowing multiple channels to be connected to the same fault condition. Additionally, each fault bus features a changeover relay to allow the user to connect alternative fault conditions to the fault buses.
Features
  • Fault Insertion on 4 or 8-Channels of Two Wire Connections
  • Suited for CAN Bus and FlexRay Fault Insertion
  • Controlled Transmission Line Impedance
  • Simple Insertion of Shorted Pair, Open and Battery/Ground Connection
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by eBIRST Switching System Test Tools
Platform PCI
Switch Type EMR
Fault Buses 4
Max I (A) 0.3
Max V DC 100
Channels 8
Brand Pickering Interfaces
