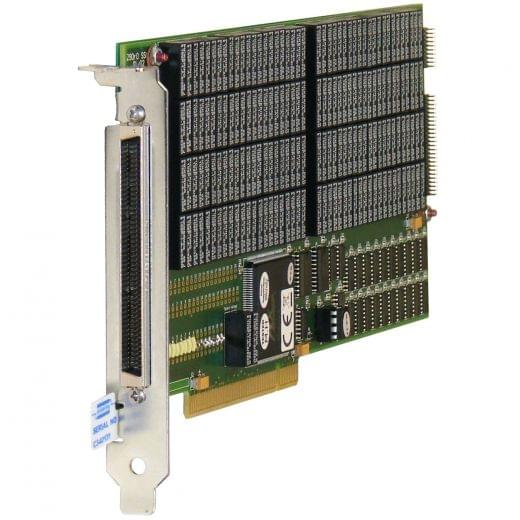

PCI Dual 20 x 4 Matrix 1 Pole Screened - 50-511-021-S

The 50-510 series of matrix cards feature a wide range of selectable switching configurations (22x4,dual 20x4,22x8 and 44x4). Larger matrices may be constructed by Daisy Chaining the common signals from multiple PCI cards. For example four 44x4 Cards will form a 176x4 Matrix, a total of 704 crosspoints. Expansion cables are available for the 50-512 and 50-513: The 50-512 can be expanded to 44x8 or the 50-513 can be expanded to 88x4 using two cards linked by the ribbon cable assembly 50-976-020-0.1M. Also the 50-512 can be expanded to 22x16 or the 50-513 can be expanded to 44x8 using two cards linked by the ribbon cable assembly 50-976-050-0.1M.

Features
  • High Density Reed Relay Matrix Card
  • 1 Short Slot PCI
  • 22x4, Dual 20x4, 22x8 or 44x4
  • 1-Pole, 2-Pole or Screened Versions
  • Large Matrices Built Using Multiple Cards
  • Screened 50 Ohm Option
  • Uses High Reliability Pickering Reed Relays For Maximum Performance
  • Fast Operating Speed <500�s
  • Switch up to 100Volts, 1.2A with 20W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by eBIRST Switching System Test Tools
Platform PCI
Switch Type Reed
X Size 20
Y Size 4
Max I (A) 1.2
Max V DC 100
Brand Pickering Interfaces
