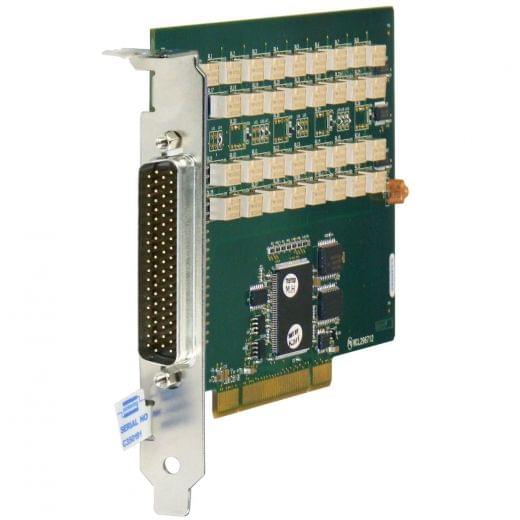

PCI Dual 8-Channel 4-Pole 2Amp Multiplexer - 50-635-007

The 50-635 2 Amp Multiplexer card is available in 9 standard configurations, as well as 9 half density configurations, all using high quality electro-mechanical signal relays allowing each channel to switch current up to 2A and voltage up to 300VDC/250VAC. The card is suitable for signal routing in ATE and data acquisition systems. Connections are made via a front panel 78-way D-type connector.

Features
  • Single: 64-Channel 1-Pole, 32-Channel 2-Pole, 16-Channel 4-Pole, 8-Channel 8-Pole
  • Dual: 32-Channel 1-Pole, 16-Channel 2-Pole, 8-Channel 4-Pole
  • Quad: 16-Channel 1-Pole, 8-Channel 2-Pole
  • 9 Half Density Configurations
  • 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Simple 78-Way D-Type Connection>
  • VISA/IVI Drivers Supplied for Windows XP/Vista/7/8
  • Supported by eBIRST Switching System Test Tools
Platform PCI
Switch Type EMR
Poles 4
Max I (A) 2
Max V DC 300
Channels 8
Brand Pickering Interfaces
