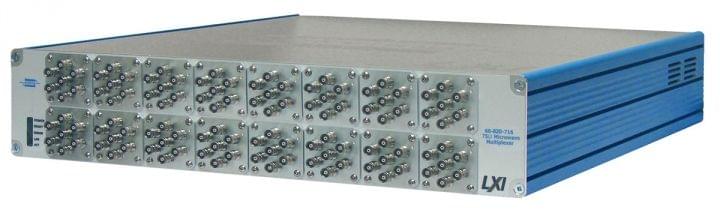

LXI 75Ohm 6:1 Microwave Multiplexer 8-bank 2.5GHz 1.6/5.6 - 60-820-008

Our 60-820 Microwave Multiplexer range is suitable for switching 75 ohm signals up to 2.5GHz. With the capability of supporting up to 16 banks of 6 channel multiplexers it is ideal for constructing complex microwave switching systems for many applications. Connection is by high performance front panel mounted DIN1.6/5.6 style connectors. A 50 ohm version, the 60-800, is also available covering frequencies to 20GHz.

Features
  • High Performance 6-Channel RF Multiplexer
  • Available With 4, 8, 12 or 16 Multiplexer Banks
  • 2.5GHz Bandwidth
  • 75 Ohm Characteristic Impedance
  • Low Loss, High Isolation
  • Compact 2U Form Factor
  • Simple Remote Control Via LXI Interface
  • LXI Standard 1.4 Compliant
Type Microwave Multiplexer
Platform LXI
Function Mux
Z (Ohm) 75
Banks 8
Max f (MHz) 2.5GHz
Channels 6
Brand Pickering Interfaces
