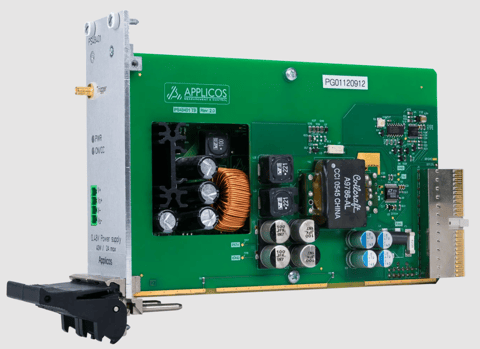

APPLICOS PS48401 PXI Power Supply

The PS48401 is a Programmable DC Power supply in a 2-slot PXI / cPCI form factor.

Featuring a fully isolated output capable of providing 0-48 VDC / 2 A / 40 W. It offers a programmable current limit and the ability to measure the output voltage and current under software or trigger control.

Features
  • Measure output voltage or current, external trigger controlled.
  • Update output voltage and current limit, external trigger controlled.
  • Sequence above functions and store measured values into on-board memory
  • Isolated Output 0-48 VDC / 2 A / 40 W max. with Programmable Current Limit
  • High accuracy / low noise output and 16 Bit Read Back of Output Voltage / Current
Output Voltage 0 to 48 V
Voltage setting resolution 0.74 mV
Voltage setting accuracy ±0.2 % of programmed value ±25 mV
Output current 2 A max. above 20 V lineary de-rating to 0.8 A (40 W max.)
Current limit resolution 35 µA
Current limit accuracy 0.5 % of programmed value ±10 mA
Voltage Read back resolution 0.74 mV
Voltage Read back accuracy ±0.1 %reading ±10 mV
Current read back resolution 35 µA
Current read back accuracy ±0.2 % reading ±5 mA
Brand Salland Engineering
