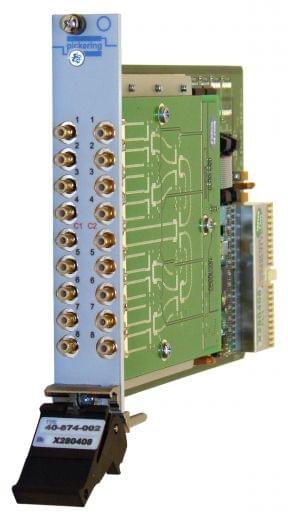

Dual 8 to 1,3GHz,50Ohm,PXI RF Multiplexer,MCX, 40-874-102

The 40-874 is a 50 Ohm 8 to 1 RF MUX available with 1 or 2 banks in a single PXI slot. All versions exhibit low insertion loss and VSWR through the use of modern RF relay technology at an affordable cost. Each MUX has been carefully designed to ensure excellent and repeatable RF characteristics to frequencies of 3GHz with each path having a nominally equal insertion loss. The injection of noise and unwanted signals into the signal paths of the 40-874 has been minimized by careful attention to the mechanical and electrical design.

Features
  • 3GHz RF Multiplexer
  • Single, Dual and Quad Versions
  • SMB or MCX Connector Versions
  • High Performance, Low Cost
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 50
Switch Type EMR
Banks 2
Poles 1
Frequency Range DC - 3GHz
Channels 8
Function Multiplexer
Brand Pickering Interfaces
