Solid, High Precision 16 bit Universal DAQ Board - Advanced Economy Model

This universal advanced economy model from the ME-FoXX PC plug-in board family is a good solution for many applications. It is fully compatible with the higher models of the series which allows simple upgrades at any time. Another way to get even more performance from this board is to expand it with external signal-conditioning!

• DAQ board for reliable, precise measurement/data acquisition and control.
• 16 single-ended analog-inputs.
  Models "s": 8 inputs also with simultaneous sampling (single-ended channels).
  Range ±10 V, ±2.5 V, 0...+10 V, 0...+2.5 V.
• High precision 16 bit/max. 300 kHz A/D conversion (PC-dependent; reduced in certain modes, PCIe version: 250 kHz; with ME-Synapse USB: 20...25 kHz).
  External digital trigger.
• 2 analog voltage outputs.
  Range ±10 V.
• 16 bit D/A conversion. External digital trigger.
• 32 TTL digital-I/O channels, organized as 4x 8 bit ports. Each port- programmable as input or output, or on models "i": 8 opto-inputs, 8 opto-outputs and 2x 8 TTL I/Os.
• 3x 16 bit counters. All lines wired to connector.
• Models "i": A/D and D/A section, counter and 16 of the digital lines opto-isolated up to 500 V.

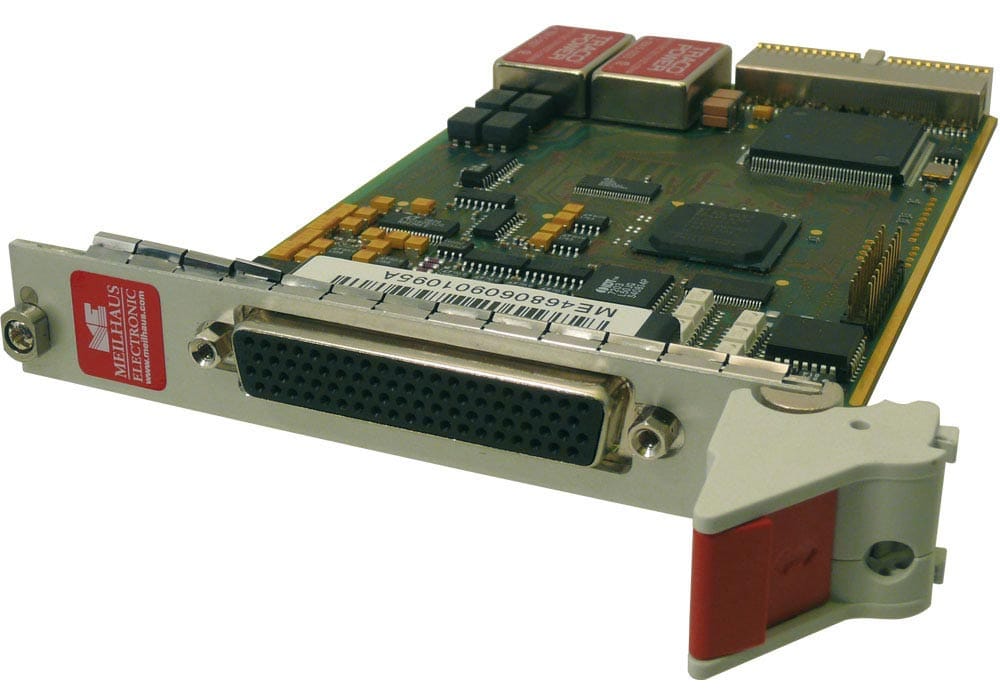

• PC DAQ board for PCI, PCI-Express or 3 U CompactPCI/PXI.

Benefits

• The reliable allround DAQ and control board.
• High performance at an affordable price.
• English and German user manual.
