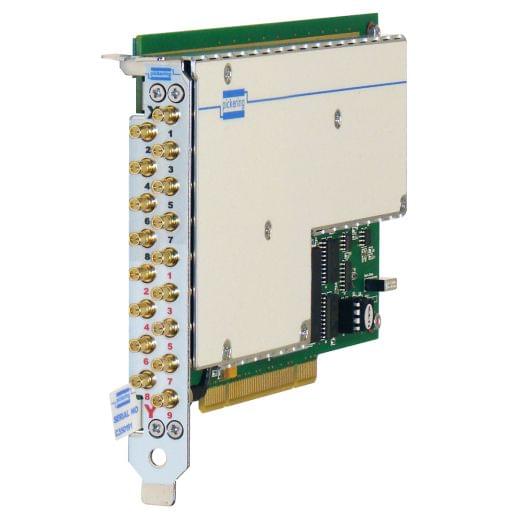

PCI 8x9,150 MHz 75Ω RF Coaxial Matrix Card, 50-725A-751

The 50-725A is an 8x9 RF Matrix Module suitable for switching frequencies up to 500MHz. The 50-725A is available in either 50Ω or 75Ω versions with SMB coaxial connectors. It is intended for the easy construction of high performance bidirectional matrix switching systems.
Automatic Isolation Switches are located on all coaxial connections, these disconnect the matrix from the external test fixture. This maximizes isolation and RF performance.

Features
  • 8x9 RF Coaxial Matrix
  • Up To 500MHz Bandwidth
  • 50Ω and 75Ω Versions Available
  • High Quality Ruthenium Reed Relays
  • High Density SMB Coaxial Connectors
  • 75Ω Version Suitable for Telecoms and High Quality Video Switching
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by eBIRST Switching System Test Tools
Platform PCI
Function Matrix
Z (Ohm) 75
Max f (MHz) 150
Switch Type RF Switch
Brand Pickering Interfaces
