Product Information

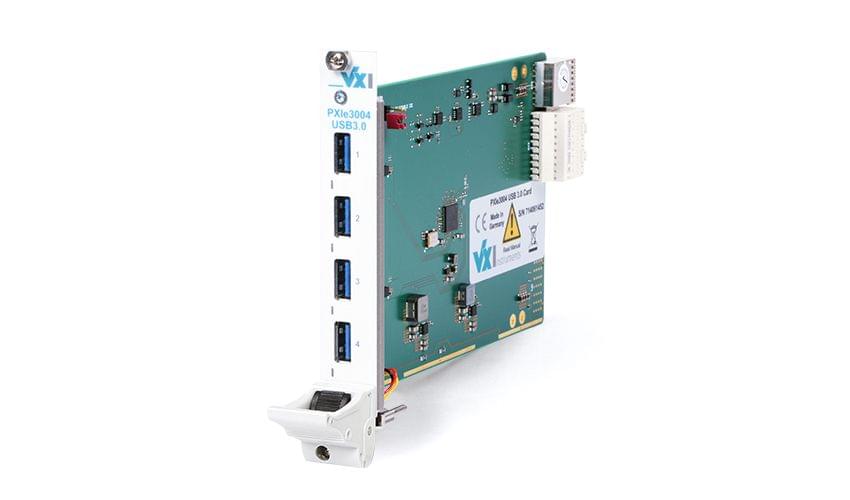

The PXIe3004 is a peripheral slot board for PXI Express systems, equipped with a quad port USB 3.0 compliant host controller. All four USB connectors are available from the front panel for attachment of external USB devices.

For optimum performance the board requires a 5 Gbps PCI Express Gen2 connection. The front panel USB 3.0 host connectors can deliver up to 1.5A V_BUS (+5V) each. A maximum total current of 3A for one PXIe3004 is possible.

When connected to USB 2.0 compliant devices, only the classic four contacts (data pair, +5V V_BUS and GND) are in use. USB 3.0 devices in addition communicate via the SuperSpeed differential transmit and receive signal pairs, available across another five contact pins.
