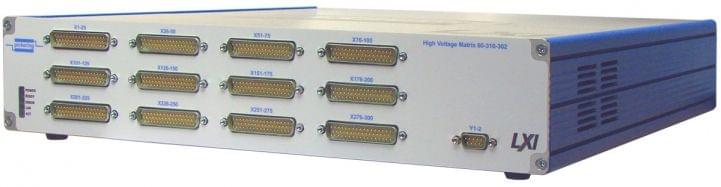

LXI 2-pole 300x2 High Voltage Matrix - 60-310-302

The 60-310 is a 2-pole Matrix Module available in 300x2, 200x2 and 100x2 formats. It is capable of cold switching 1000VDC and has a maximum carry current of 1A. It is designed for high voltage applications including circuit board isolation testing, relay testing, semiconductor breakdown monitoring and cable harness insulation testing. The 60-310 is designed in accordance with the LXI Standard 1.4 and is supplied in a 2U high, full rack width case with 500mm depth.

Features
  • 2-Pole Matrix Available in 100x2, 200x2 and 300x2 Formats
  • Cold Switch up to 750DC Working/1000VDC Typical
  • Hot Switch up to 500VDC
  • Maximum Carry Current of 1A
  • High-Quality Reed Relays With Rhodium Contacts
  • Easily Cascaded to Create Larger Matrices
  • 2U Rack Mountable Enclosure
  • LXI Standard 1.4 Compliant
  • IVI and Direct I/O Drivers
Platform LXI
Switch Type Reed
X Size 300
Y Size 2
Banks 1
Poles 2
Max I (A) 1
Max V DC 750
Brand Pickering Interfaces
