DC-1GHz75Ohm,Type43, PXI 4xChangeoverSwitch, 40-710-714

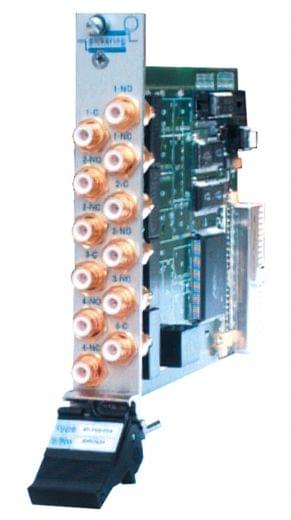

Model 40-710 RF switching card has a bank of 4 individual high performance RF changeover switches (50 or 75 Ohm, Bi-directional) with very low insertion loss, suitable for handling signals up to 2.5GHz. Applications include aerial switching, routing high frequency signals into oscilloscopes and analysers. Available with a choice of connectors: SMA, SMB and Siemens 1.0/2.3 versions. BNC versions are also available with reduced bandwidth and 2 PXI slot occupancy. The 75 Ohm versions are suitable for high frequency video and telecommunication signals up to 1GHz.

Features
  • 4 Changeover RF Relays Per Module
  • Up To 2.5GHz Bandwidth in 50 Ohms
  • Up To 1GHz Bandwidth in 75 Ohms Suitable For Telecoms or Video Applications
  • Tree Networks may be Constructed by Inter-Linking Individual Modules
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Function Relay
Z (Ohm) 75
Switch Type EMR
Banks 1
Frequency range DC - 1GHz
Channels 4
Brand Pickering Interfaces
