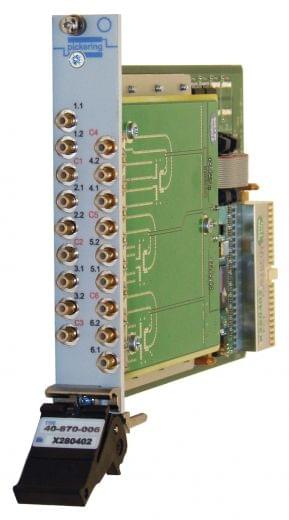

Triple,SPDT,DC-3GHz50Ohm,MCX, PXI RF Switch, 40-870-103

The 40-870 is a 50 Ohm RF Switch available with 3 or 6 separate SPDT relays in a single PXI slot. Both versions exhibit low insertion loss and VSWR through the use of modern RF relay technology at an affordable cost. The switch banks been carefully designed to ensure excellent and repeatable RF characteristics to frequencies of 3GHz. The injection of noise and unwanted signals into the signal paths of the 40-870 has been minimized by careful attention to the mechanical and electrical design.

Features
  • 3GHz RF Single Pole Changeover Switch
  • Triple and Hex Versions
  • SMB or MCX Connector Versions
  • High Performance, Low Cost
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Function Relay
Z (Ohm) 50
Switch Type EMR
Banks 1
Frequency range DC - 3GHz
Channels 6
Brand Pickering Interfaces
